Linear Filler and Capper

Liquid Fillers

Model SpeedFormat Range
DFM180/min with 4 heads, available with 2,4,6,8 headsDosing range: 30-310 ml
Accuracy: +/- 0,5%
Puck dia. < 60mm

Media

Videos



Liquid filling of cosmetic bottles
Liquid filler with capping machine
High Speed Filler and Capper - 150 Bottles per minute

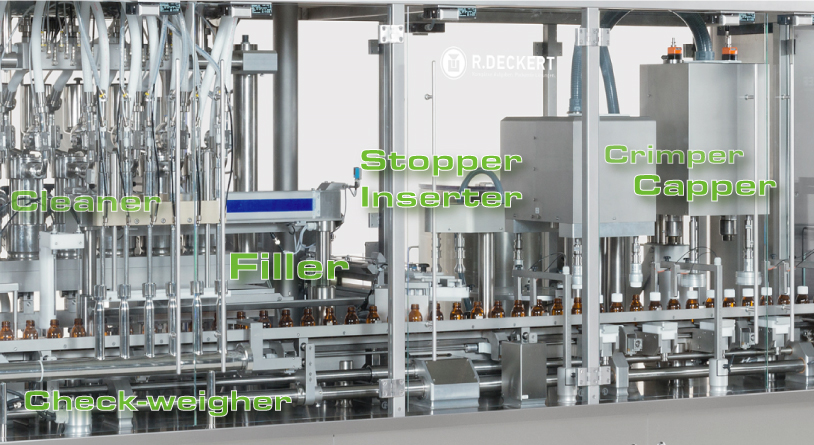

MonoblockLiquid Filling, Capper, Stoppering and Crimping Machine

Pictures

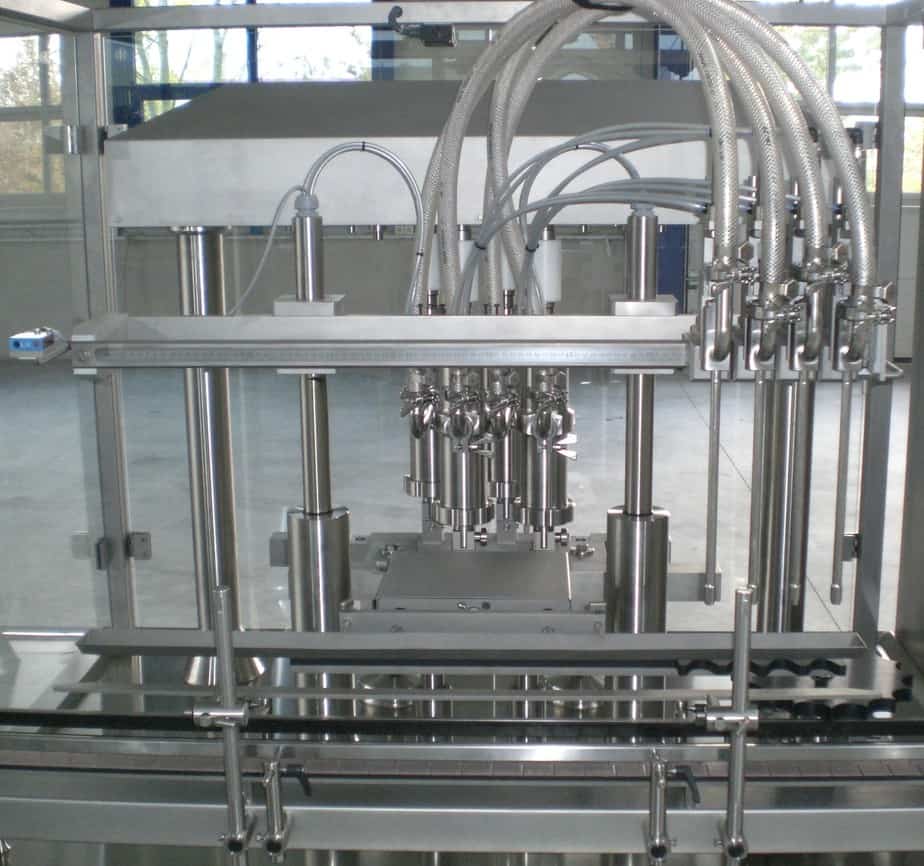

Linear Filler With Rotating Piston Pumps
Linear Filler With Rotating Piston Pumps - Raupack UK and Ireland

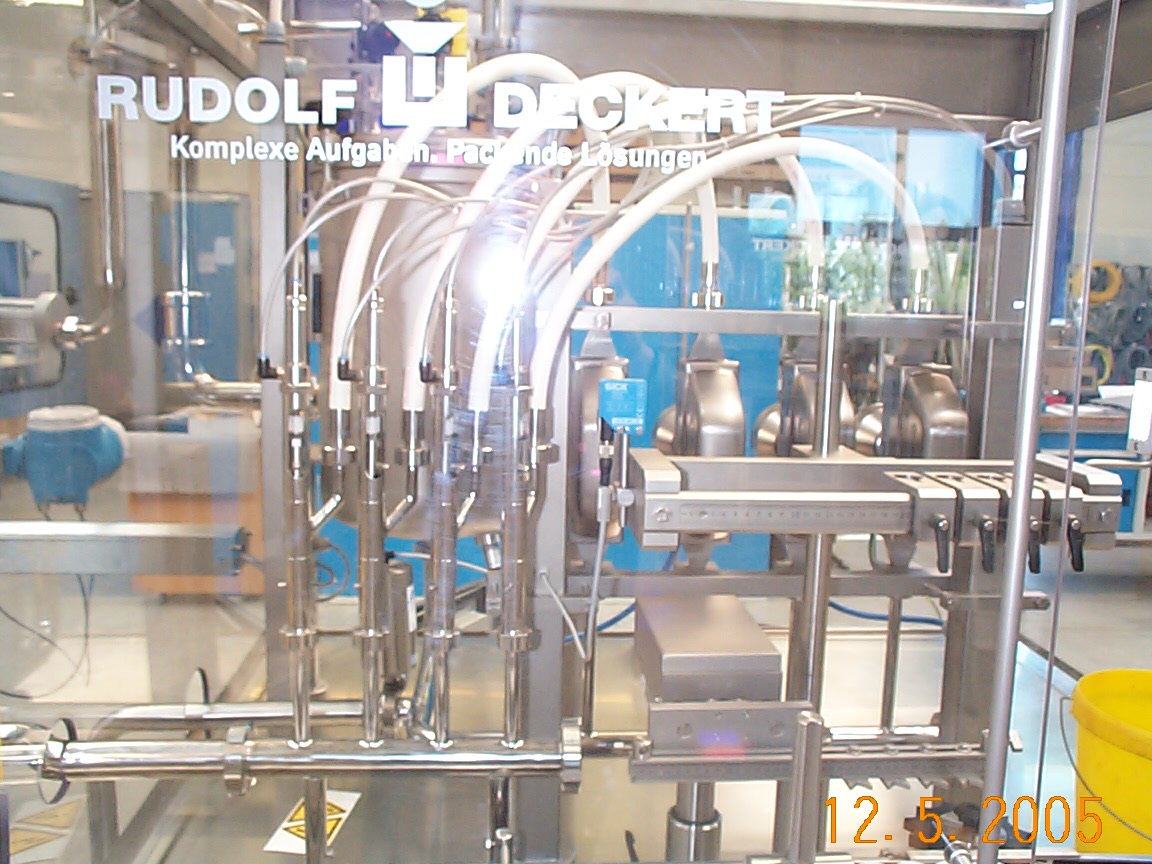

Cleaning in Place on Linear Filling Machine Raupack UK and IrelandCleaning in Place on Linear Filling Machine Raupack UK and IrelandLiquid Filling and Capping Machine 100 per minute Raupack UK and IrelandMonoblock, Capper, Filler, Stopper Insertion, Check Weigher Raupack UK and IrelandLinear Filler With Rotating Piston Pumps Raupack UK and Ireland

Summary


Our Piston type filler with diaphragm valve controlled dosing pumps for filling of liquids with 4 filling heads. It has a dosing range of 30-310ml and is capable of filling bottles with 8 heads. The mechanical drive of the piston stroke is adjustable and has a bottom-up movement. The continuous driven conveyor will transport the containers into the machine. The containers will be filled with the adjusted volume. After the filling process the machine will release the filled containers.

Applications

  • Gels
  • Creams
  • Water

Main Benefits

  • Tool-less fast changeover
  • 2,4,6,8 filling heads
  • Rotary valve piston pump for thick products
  • Sealless rotation piston pump for thin products

Technical Features

  • Servo driven HMI controlled formats
