Monoblock Capsule and Tablet Counter

Monoblock Tablet Counting, Capper, Labeller

Model SpeedFormat Range
TVM60/minDia. < 90mm
Height: 40 - 215mm

Media

Videos



Monoblock Table and Capsule Counter, Capper, Labeller
Monoblock Tablet and Capsule Counting Line 758

Pictures


Monobloc Counter Capper Labelling Machine
Monobloc Counter Capper Labelling Machine - Raupack UK and Ireland

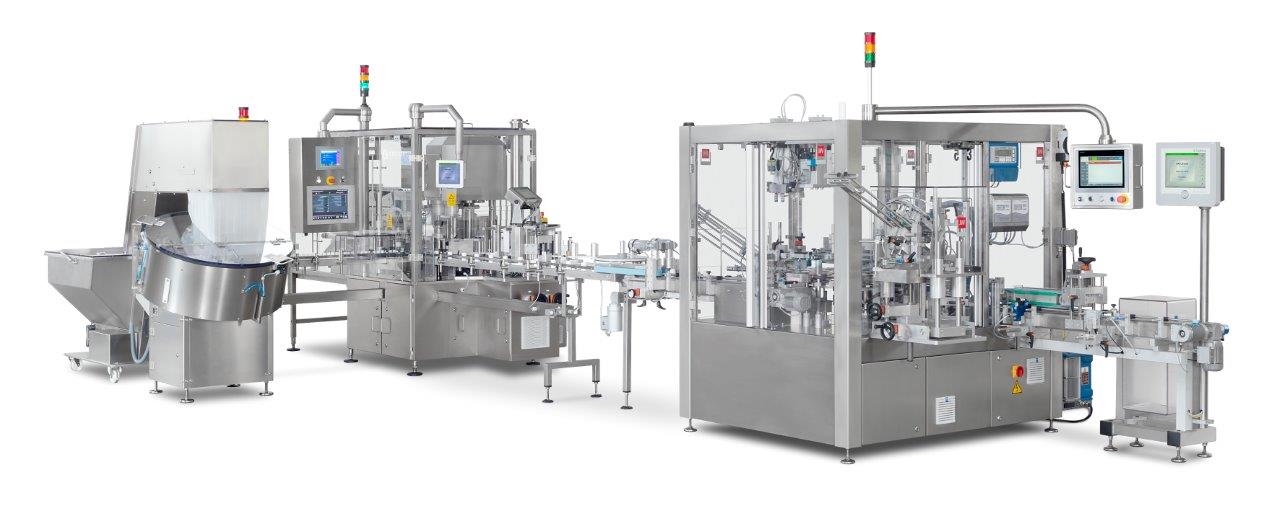

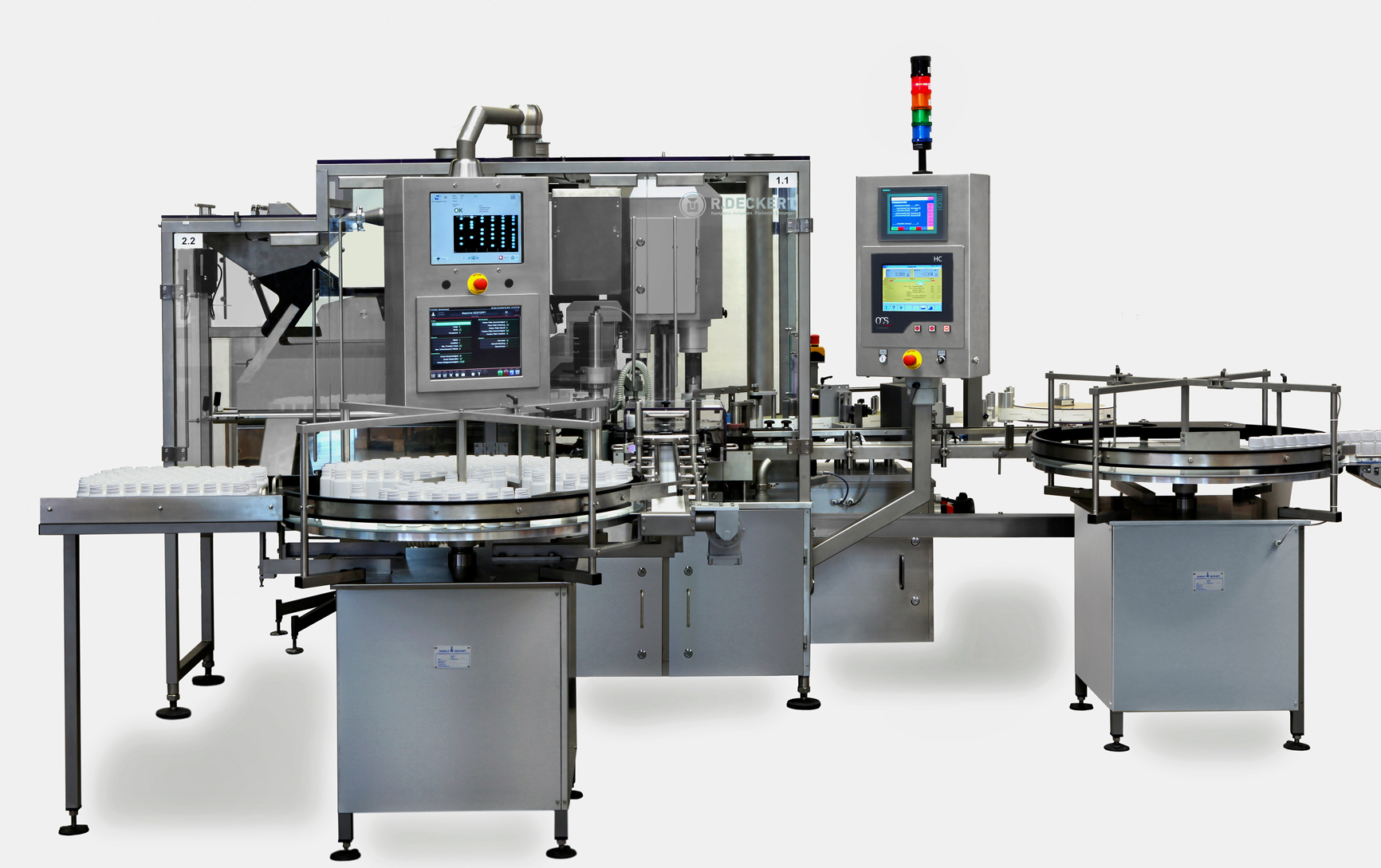

Induction Sealing on Monobloc Tablet Counter Raupack UK and IrelandMono-block tablet counting line TVM Raupack UK and IrelandMonoblock Tablet Counter Raupack UK and IrelandCompact Filling Line - Unscrambler, Counter, Checkweigher, Capper, Cartoner Raupack UK and IrelandTVM Tablet Counting Line with Glove ports Raupack UK and IrelandMonobloc Counter Capper Labelling Machine Raupack UK and Ireland

Summary


We have extensive experience in projecting complete tablet counting lines, integrating Cremer tablet and capsule counters into complete bottling lines which we supply. Over the years it has become clear time and time again that size matters. As a result we set out to reduce the footprint of our tablet counting lines:

The first step to tackle this issue was to design the AVM 738E integrated capper/labeller. This enabled us to cap and label on the same machine frame, reducing overall foot print and cost compared to conventional tablet counting lines. This is ideal for low speed applications for which we now have many integrated capping and labelling machines in the field.

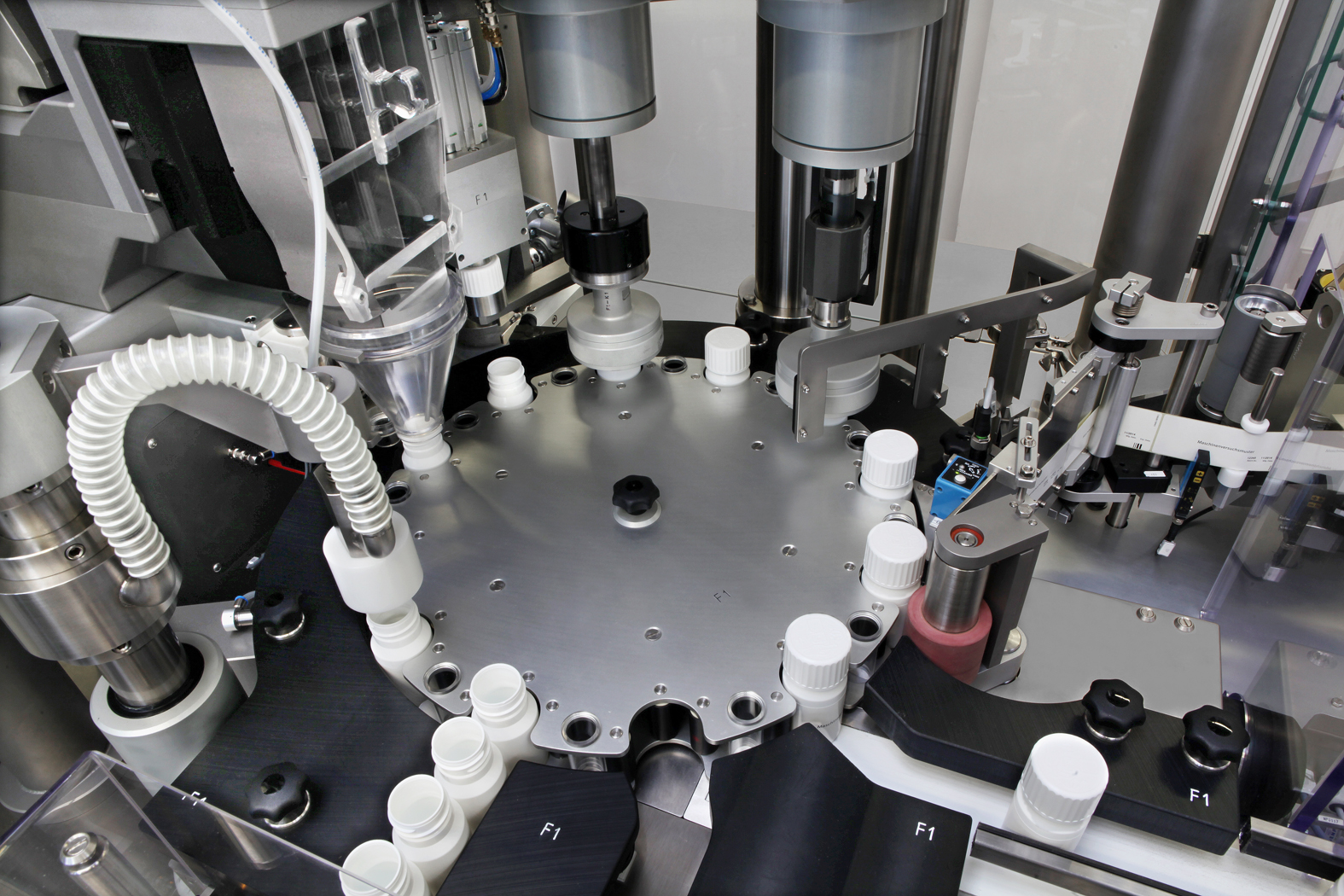

Subsequently we fitted a Cremer new 6 lane counting modules onto the starwheel of our capping machine to produce a monoblock counting, capping and labelling machine. Incoming bottles are filled, capped and labelled with a self adhesive wrapround label.

Bottle air cleaning, unscrambling and other standard tablet counting line functions are also available. Bottles can be weighed on the starwheel to confirm the already very high accuracy count of the Cremer counting head.

The complete system can handle bottles up to 75 mm in diameter and 150 mm high and run at up to 2000 bottles an hour, depending on the bottle and the tablet count.

There are a wide range of stations and options available:

Not all options are compatible with each other.
  1. Air Rinse
  2. Check weighing
    1. Gross Weigh
    2. and/or Tare
  3. Broken Tablet inspection
    1. Broken Tablet reject

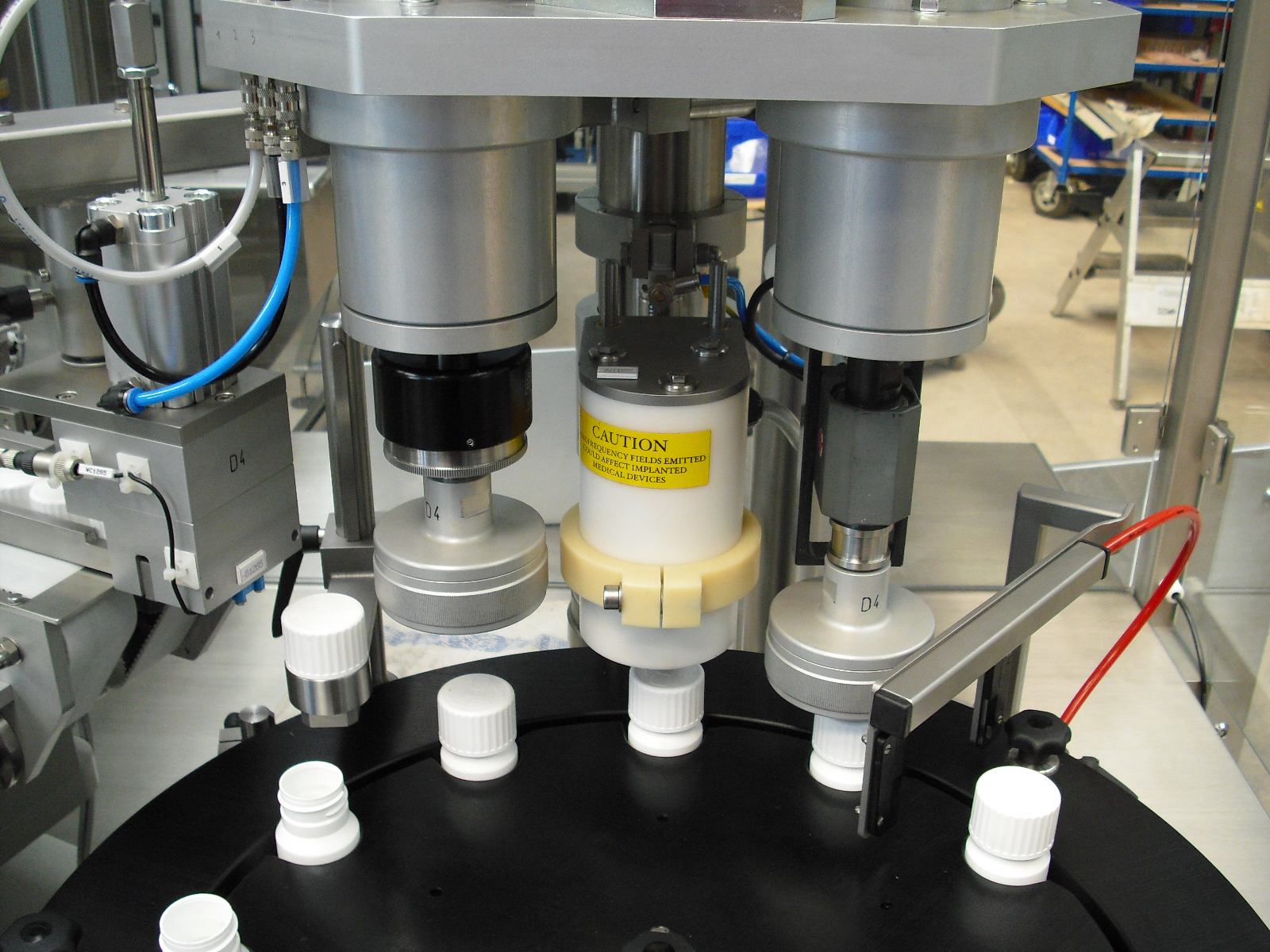

  4. Induction Sealing
  5. Screw Capping
  6. Press on Capping
  7. Re-torquing
  8. Desiccant Insertion
  9. Cotton Insertion
  10. Labelling
    1. Label Print
    2. Label print Verification, Text or Pharma Code

Next Steps - Quotes and Visit

In order to be able to quote we will need to how the following
  1. Options required from list above
  2. Max and Min Container Dimensions including Orifice Dimensions
  3. Cap sizes and closure style
  4. Tablet/Capsule Sizes
    1. Counts into each bottle

We would be happy to visit to discuss your requirements in more detail and view the space available for the machinery.

Applications

  • Plastic or glass bottles
  • Tablet or capsule filling
  • Labelling for round bottles

Main Benefits

  • Small Footprint
  • Count, Cap, label on same machine
  • Labelling for round containers
  • Optional in line weighing
  • Quick changeover

Technical Features

  • Single Turret
  • 6 Track Cremer Counter
  • Servo Controlled Vibratory Tracks, setting stored in Recipe
  • No cams to adjust under machine frame
  • All settings and timings adjusted from the HMI

News

News:

Deckert Delivers Compact Tablet Counter with Glove Ports

17/11/2017 17:32:19

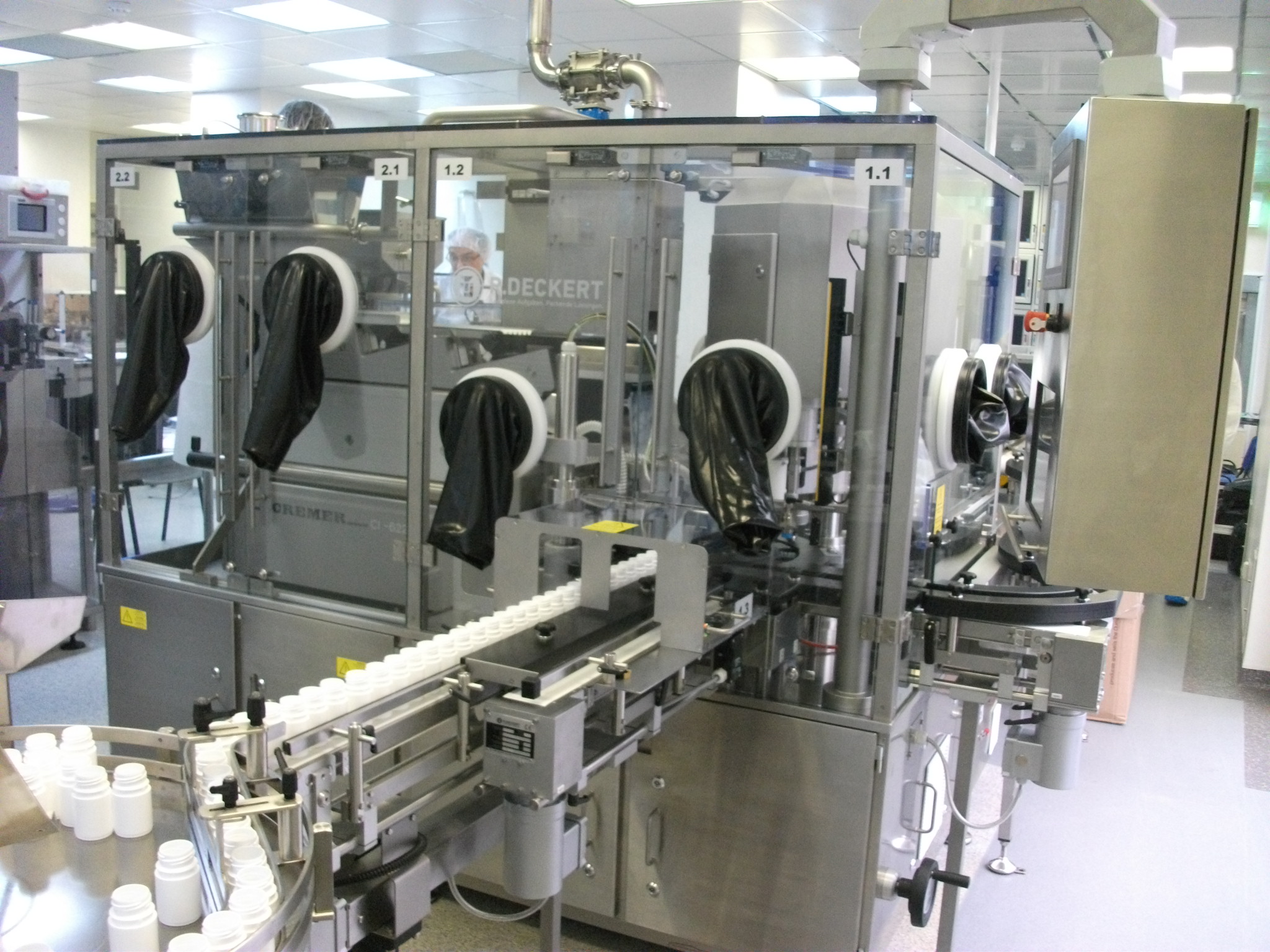

Rudolf Deckert has just delivered their popular TVM mono-block tablet counting line fitted with Glove Ports. The customers cancer drug is both dusty and toxic to the operator. Therefore the Tablet Counter and all sorting bowls were covered with polycarbonate hoods. Inside the machine guarding extraction caused an under pressure minimising the escape of toxic dust. Any operator interventions could take place through the glove ports. A rapid transfer port (RTP) was fitted to the tablet infeed to allow containing product loading
Read More

Monobloc Tablet Counter Exhibited at Fachpack is fast becoming a hit

29/07/2014 07:28:42

This tablet counter can multi-task very well. She cleans the bottles, fills them with tablets, caps them and labels them. All the while she has her eyes open and is constantly inspecting the tablets for broken pieces and miscolouring...
Read More

Deckert 120 bottles per minute tablet counting line

29/03/2011 15:29:26

Deckert have recently delivered a 120 pots per minute tablet counting line with a new design of modular capping machine with linear bottle transport using a walking beam.
Read More

New Integrated Tablet Counter Capper Machine

03/08/2010 18:41:09

Deckert have fitted a 6 lane counting module on a standard capping and labelling starwheel and created a monoblock counter, capper and labeller.
Read More
