Order Picking Robots

Order Picking Systems

Logistics operations and warehouses often require mixed pallets to send to individual customers.

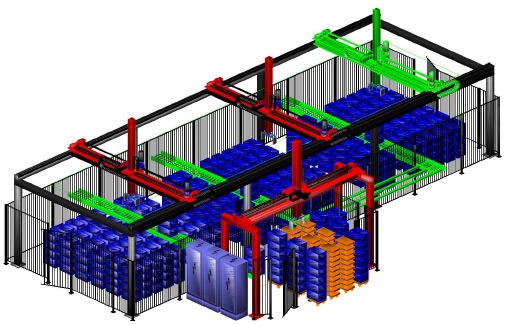

The Ro-Mix software works with the Gantry robot palletiser and any required stackers to build pallets that fulfil customer orders.

This order picking can include the following pack types:

  • Cases
  • Trays
  • Kegs
  • Totes

    Key Features

  • Multi-product gripper
  • Modular System
  • Automatic layer scheme generation using Ro-Mix software
  • High through puts (200 pallets per hour)
  • Different pallet sizes
  • Integrated wrapping possible

    • Order Picking System processing 200 pallets per hour. Kegs, Totes, Cases

    News: Order Picking in the Deep Freeze: De-layering

    12/06/2009 15:25:07

    Ro-ber have delivered a robotic de-layering system into a deep freeze, working at temperatures of -27˚C. 300 SKUs are handled on a special universal gripper with vacuum and gripper functions. Not only is this wide range of formats be handled on the universal head, part layers or layers with holes in the pallet pattern are handled by means of the intelligent gripper control which compensates for such variation automatically.

    Not only is the system able to handle 300 incoming formats, is builds up to 12 outgoing order or shop pallets simultaneously at up to 240 layers an hour.

    Often interlayers can give problems to less sophisticated “universal “ de- layering systems. However Ro-ber have solved this issue as well by a modification on the robot head and a special software function. Height too, which can be a challenge on other systems is also handled by elegant design of the portal robot configuration.

    Read more about Order Picking
