Tamper Evident Track and Trace Labeller

Serialisation Carton Labeller

Model SpeedFormat Range
DTTUp to 300 Cartons per minuteA=20-100 mm B=15-85 mm H=50-200 mm

Media

Pictures

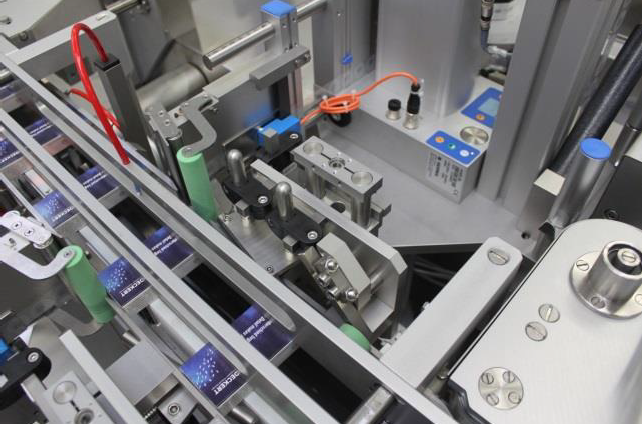

Track and Trace Tamper Evident Labeller
Track and Trace Tamper Evident Labeller - Raupack UK and Ireland

Carton Transport on Track and Trace Machine Raupack UK and Ireland Raupack UK and IrelandTrack and Trace Tamper Evident Labeller Raupack UK and Ireland

Summary


The New Deckert DTT serialisation carton labeller is designed with two main objectives which enable:
  1. Integration with a customer specified Track and Trace system
  2. Allow for fast, repeatable free changeover.
Fast changeover is made possible because all changeover points for carton sizes are controlled by drives, which are saved to the recipe system. All adjustment points move automatically, either by the touch of a button on the HMI or by barcode scanning on the operators format sheet
The DTT serialisation machine is robustly built including safety glass guarding for a durable high quality finish.
The touch screen utilises an industrial PC so that peripherals can be easily integrated and images from cameras etc. displayed.

Applications

  • Serialisation of Blister Cartons

Main Benefits

  • Fully Automatic changeover from the HMI or using a scanner
  • Motor driven adjustment points
  • Open to whichever Track and Trace architecture is required
  • Lugged conveyor transport
  • Herma labeller
  • Optional vignette labeller

News

News:

Track and Trace Tamper Evident Carton Labeller Shipping to Customer

23/02/2016 15:20:14

Our revolutionary Track and Trace Tamper Evident Carton Labeller uses barcode scanner to read barcodes and automatically adjusts format sets based on the product. One of the main advantages of this machine over its competitors is that it uses lugged belt during transport which means the cartons don't get squeezed in between 2 belts. This allows perfectly clean and flat surface for the print and apply labeller. The unit reaches the speed of up to 250 products per minute, but the potential of the machine is 300 products per minute. The ergonomics of the Track and Trace Tamper Evident Carton Labeller is second to none. The label rolls are located inside the machine frame and they are easy to change. The working area is easily accessible.
