Volume Reducing Case Taping Machine

Box and Carton Taping Machine

Videos



Volume Reducing Carton Taper with Recyclable Gummed Tape

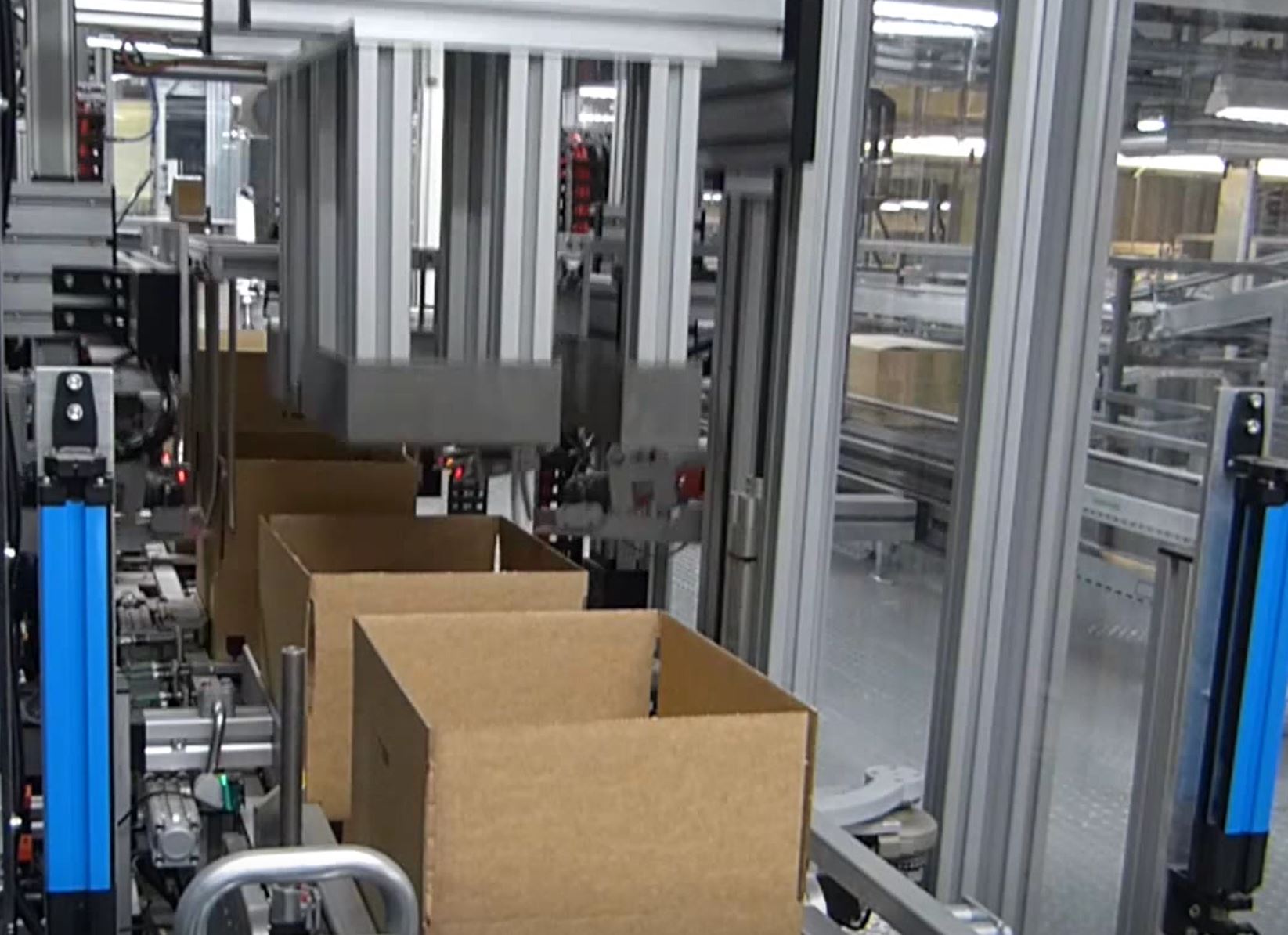

Vario 558 volume reducing box closing machine in-feed of mixed cases

Pictures


Volume Reducing Case Sealing Machine
Volume Reducing Case Sealing Machine - Raupack UK and Ireland

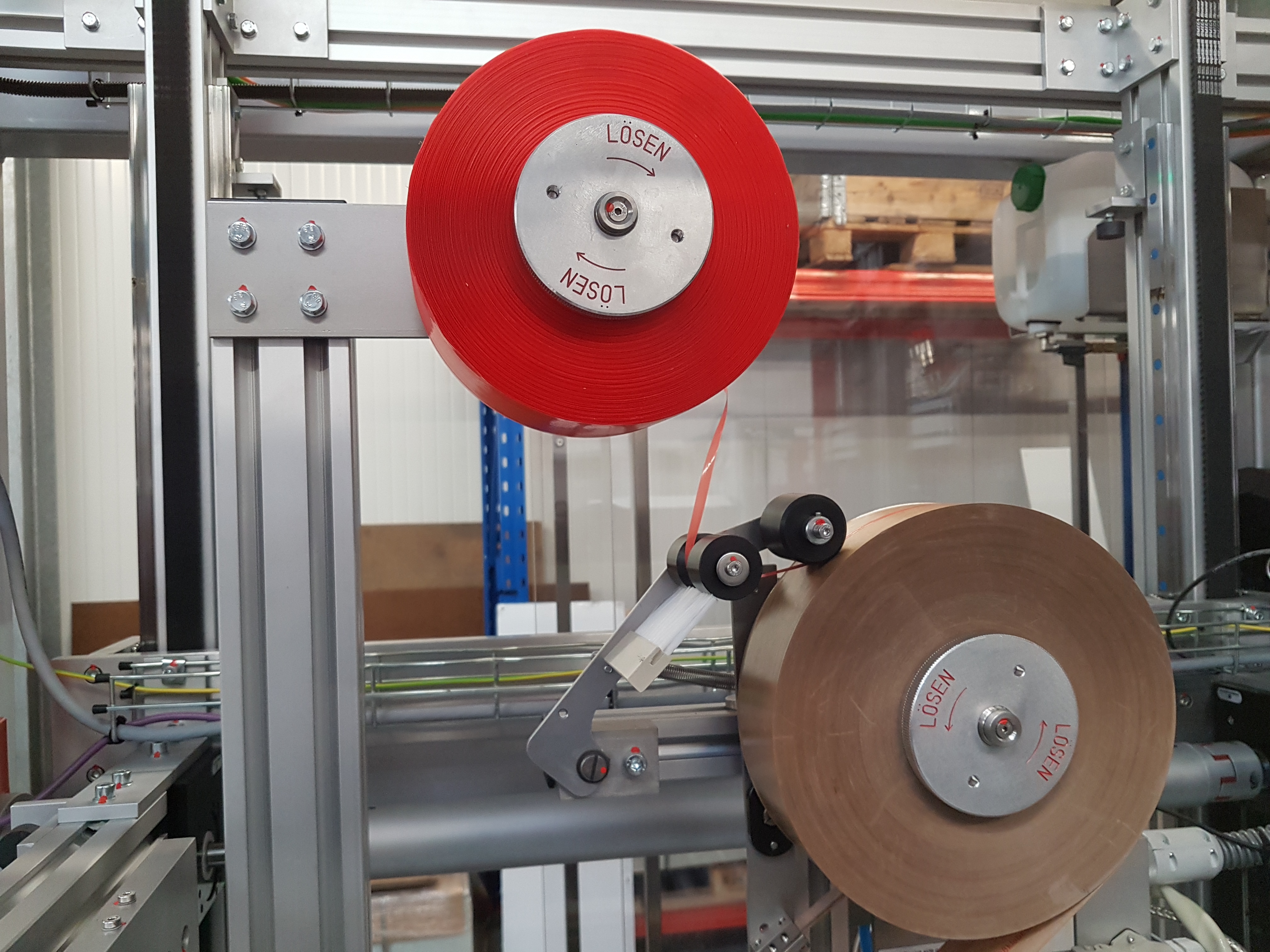

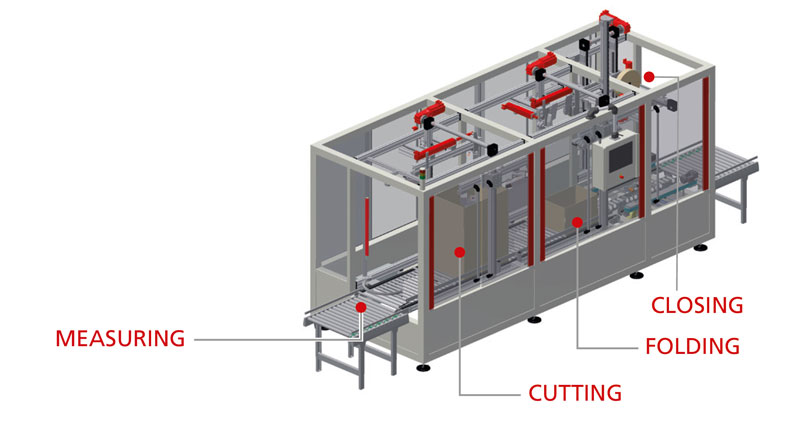

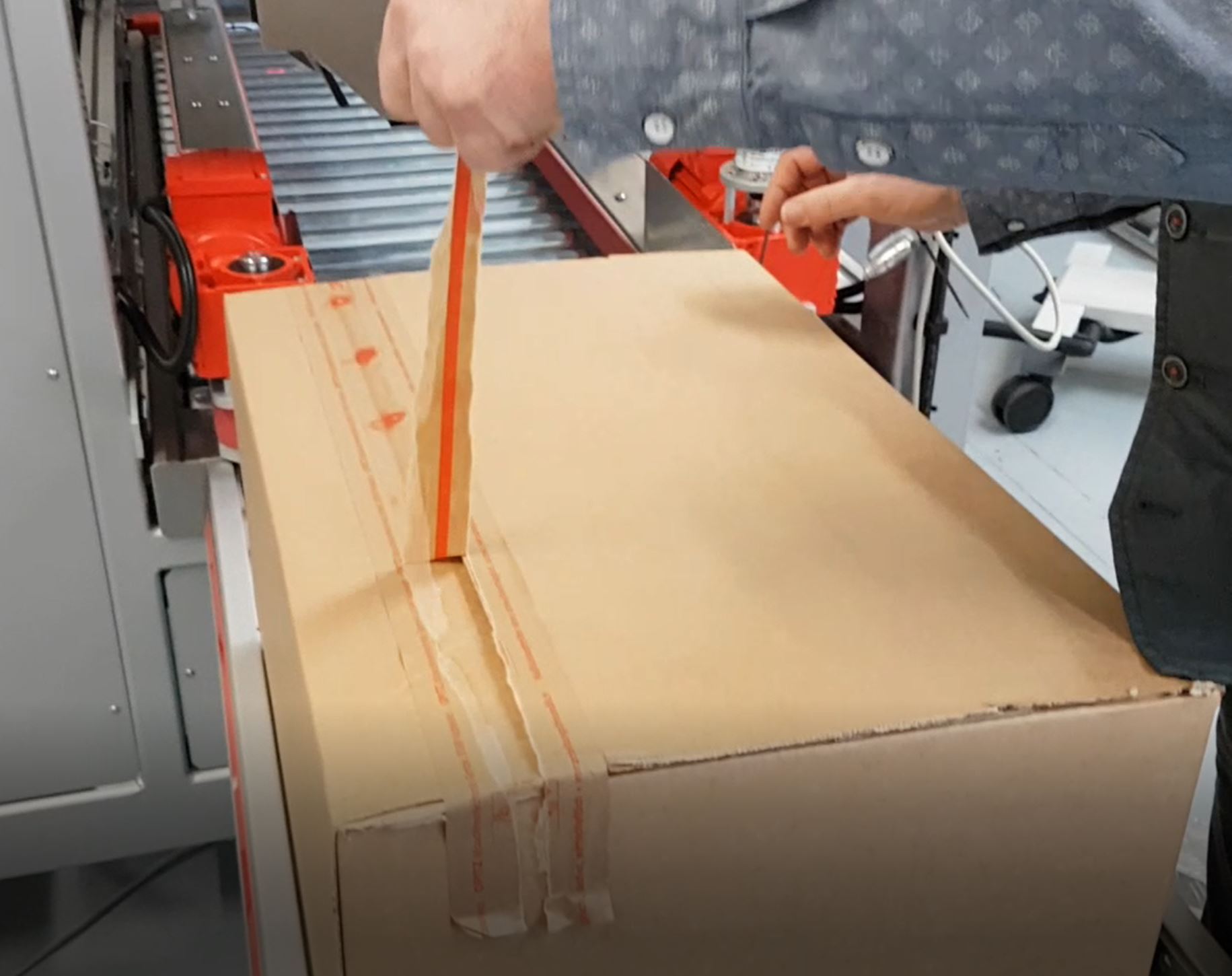

Gummed tape and Knife-free opening strip reels Raupack UK and IrelandKnife free opening of case closed with gummed tape Raupack UK and IrelandVario 588 volume reduced taped box Raupack UK and IrelandVario 558 volume reducing box closing machine schematic Raupack UK and IrelandVario 558 volume reducing box closing machine in-feed of mixed cases Raupack UK and IrelandVolume Reducing Case Sealing Machine Raupack UK and Ireland

Model Vario GO558
Speed 10 cartons/minute
Format rangeLength 300 - 600 mm
Width 200 - 500 mm
Height 110 - 500 mm
The Vario 558 is designed to save transport and filled goods cost by reducing the dead space inside the case. Sensors measure the footprint, height and case contents. Knives slit the creases in the box to a given distance above the contents. Flap closers close the flaps to the height of the carton. The gummed tape dispenser moves over the flap edge and tapes the case. The gummed tape closure forms a homogenous bond with the case. Both substrates are paper. The user is able to open the case without the need for a knife protecting the contents from damage. The paper tape can be recycled with the case.

Changeover not Required

The Vario 558 case closer automatically adjusts to the footprint and height of each incoming box. No changeover is required.

Options

The Vario GO558 is also available with self adhesive tape closure or with hot melt glue.

Applications

  • Logistics and Dispatch
  • Warehouse goods out
  • Consumer goods
  • Internet order

Main Benefits

  • Reduced fill good costs
  • Reduced Transport costs
  • Recyclable paper tape application possible
  • Tamper evident gummed taped possible
  • Knife free box opening with tear strip
  • Additional taping positions optional

Technical Features

  • Sensors detect incoming case footprint, height and content height
  • Knives slit creases to reduce height
  • Gummed tape dispenser seals folded flaps
  • Automatic volume reduction

News:

Volume reducing case sealer wins Innovation prize
3/28/2018 2:58:21 PM

Raupack has recently taken on the Agency for Opitz Maschinentechnik who in 2016 won an innovation award for their Volume Reducing Case Sealer, the Vario 558. This volume reducing case sealing machine will close cases of differing footprint and heights on the fly.
