Cartoners


CCM MV Semi Automatic Vertical Cartoner complilation, loading pasta heat pa

Whether you are looking to carton your product horizontally or vertically, we have a machine to offer you. Our cartoners can be designed for semi-automatic or fully-automatic operation. Automatic leaflet insertion is also possible on our equipment, even with manual product feeding. Our cartoners can erect cartons at up to 30-40 cartons per minute speed in semi-automatic, up to 60 cartons per minute in fully automatic operation.

These cartoning machines are designed and built in Germany to the highest standard. Changeover time is around 10-15 minutes which improves operating efficiency. Both the horizontal and vertical cartoners are designed in a space saving layout in order to minimise machine footprint.

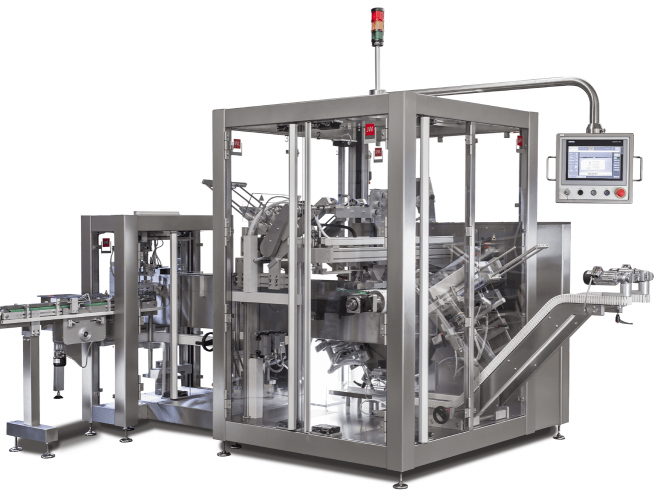

Horizontal Cartoning Machines

The output of our horizontal cartoners starts at below 60 per minute and goes up to 300 cartons per minute. The CCM-AV is an extremely compact machine that uses a turret instead of chain drive. This keeps it simple and compact. For higher speed applications we offer continuous motion chain driven horizontal cartoners.

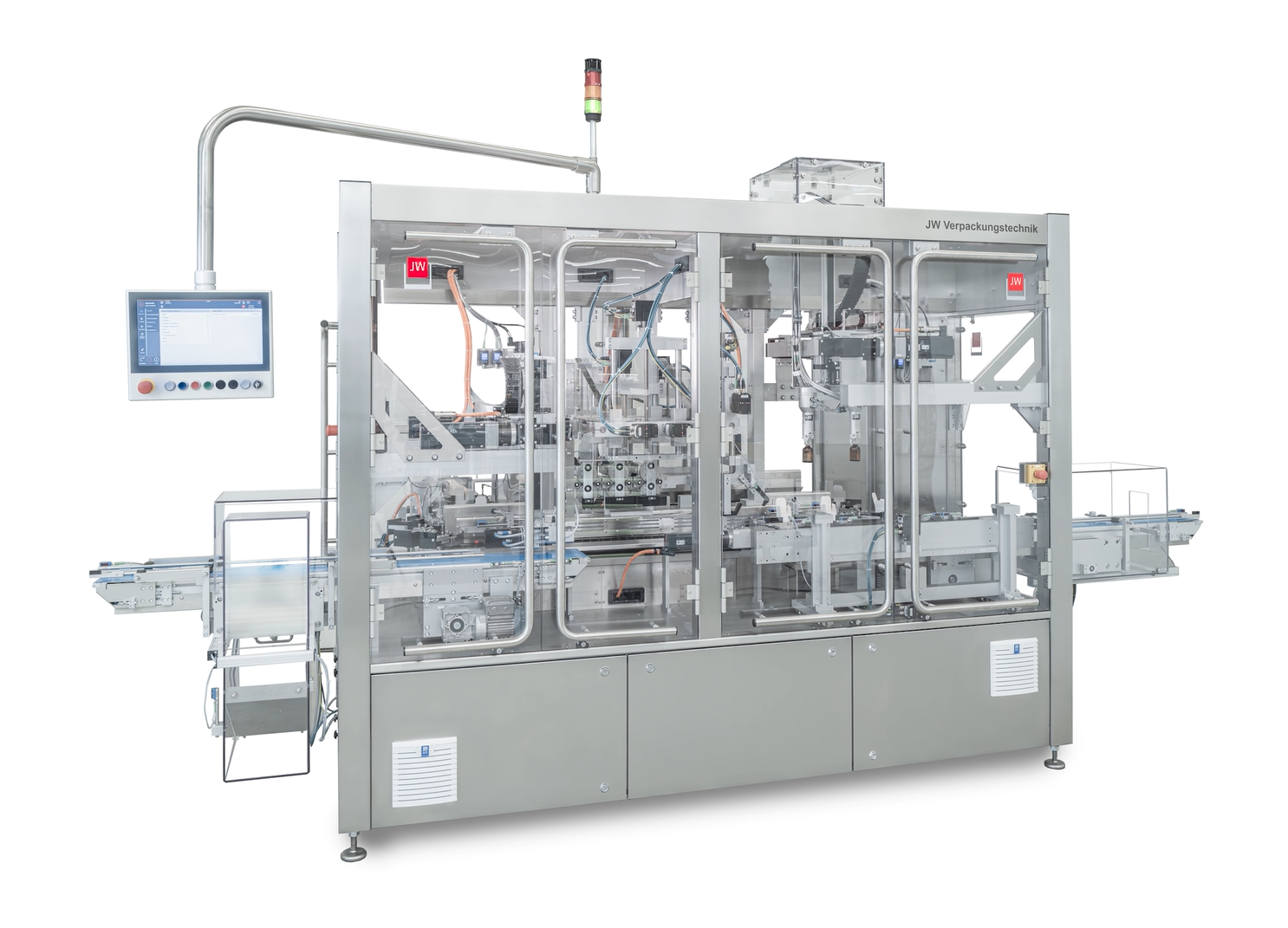

Vertical Cartoners

Our vertical cartoners can go up to 60 cartons per minute. The vertical cartoner is more suited to?applications where manual loading is required than horizontal cartoners. Furthermore, our?vertical cartoning machine is ideal for products that arrive standing such and vials and bottles. It also offers considerable space saving due to its small footprint and short in-feed conveyor. Our horizontal and vertical cartoners have been designed to carton sachets, blisters, contact lenses and various special shaped products. In case you require tamper evident labelling we can provide a unit that is capable of applying two-sided tamper evident labels. One of our recent developments was the design and development of the DUO machine which works with two rotary wheels and its speed goes up to 120 cartons per minute.

Contact Raupack or request a ring back today using our Ring Back Form to discuss your business requirements and how we can assist your operation.


News about RAUPACK Cartoning Machines ? Vertical Cartoners? Horiztonal Cartoners:

Pre-breaking, carton insides and forming cartons from flat blanks


This is the third video in a series of videos about Raupack and JW cartoners that look at carton design and their implications on automation. For optimal performance on our cartoners, cartons should be pre-broken so they open easily. Where this is not possible because of the carton design, we can use a special cartoner and opening system to help the carton open. For cartons that are formed from flat blanks we use a form and die to create the carton.
27/02/2023 09:00:29

Designing Hot Melt and Tuck Closures for Cartoning Machines


JW Automatic and Semi-automatic Cartoners are compact and efficient. They are designed to accommodate all types of cartons and closures. With adjustable tooling, different types of cartons and closures can be run at the same time, allowing you to package several product at once.
18/11/2022 11:41:06

Reduce packaging, Reduce plastic, Recycle everything


Customers are looking for sustainable alternatives to plastic packaging. Glass and card are fully recyclable and have existing recycling infrastructure in place.
26/11/2021 17:15:50

Cost Effective Top Load Cartoner


If user experience is a large consideration in your packaging requirements, consider a top loaded carton for its practical and aesthetic qualities, combining high quality product finish with great functionality.The JW CCM is a cost effective, compact vertical cartoner with many options available to suit your packaging needs.
03/05/2022 11:57:38

JW develops Mask Cartoner to meet payback and delivery requirements of volatile market


Since the outbreak of Covid 19 there has been a huge surge in demand for disposable masks. Times are uncertain and whilst mask manufacturers saw a spike in demand for their products, they could not be certain of the longevity of demand. Their customer, a Germany Mask manufacturer, needed a machine priced for a fast payment with a short delivery time.
22/12/2020 17:40:16

Cartoner that Counts into Cartons


JW has supplied a filter cartoner that count filters into a box using a Cremer CS-TQF 830 counting module. The use of a counting module ensures the right number of products is in each box. compared with other methods such as multi-head weighers, counting is a space efficient way to bring products to the machine .
09/07/2019 13:59:41

Barry M satisfied with vertical cartoning machine


One of the leading brands in the cosmetics industry, Barry M have recently purchased a fully automatic vertical cartoning machine to pack nail varnish bottles into cartons. The machine was delivered to their main manufacturing site in London and they couldn't be more satisfied with the system since.
01/12/2016 16:26:56

Jakob and Wienmeier Supply cartoners to Tea Industry



23/02/2016 15:32:19

Semi-Automatic Vertical Cartoner for the Pharmaceutical Industry


Raupack and JW recently shipped a Semi Automatic Vertical Cartoner to the Pharmaceutical Industry. The customer was looking for maximum flexibility without compromising on the verification requirements of the Pharmaceutical industry. Exchange tooling allows the machine to process Tuck in cartons - both Aeroplane and Reverse Tuck as well as Crash lock or hot melt cartons.
05/10/2023 12:32:40

Turnkey Hardware and Software Serialisation solution for Contract Manufacturers in the Pharmaceutical Industry


The new Amacoder Track and Trace Tamper evident labeller marries serialisation project hardware and software. The result is a turnkey solution that is compact on the ground in the packaging line but whose reach extends to cover all aspects of data integration to Serialisation Authorities, Partners and beyond.
12/03/2018 09:57:02
